SlimFaas User Interface

SlimFaas includes a web user interface that gives operators a live view of functions, jobs, queues, and network activity.

The user interface is available at the SlimFaas root address, for example:

http://<slimfaas>/

The UI is served by the SlimFaas application itself and uses the same backend endpoints as the API. It is intended for operational visibility and manual wake-up actions, not as a replacement for Kubernetes configuration.

Follow a request in the dashboard

Start with Get Started, then keep this UI open while following the Guided Tour. Each exercise names the request to send from cURL or Bruno and the resulting state or traffic to observe. The UI provides visibility, wake actions and a metadata-only data inventory. Use cURL or Bruno to invoke APIs or inspect stored contents.

1. What the Page Shows

The dashboard follows the same visual language as slimfaas.dev: primary blue, light surfaces and compact component-owned controls.

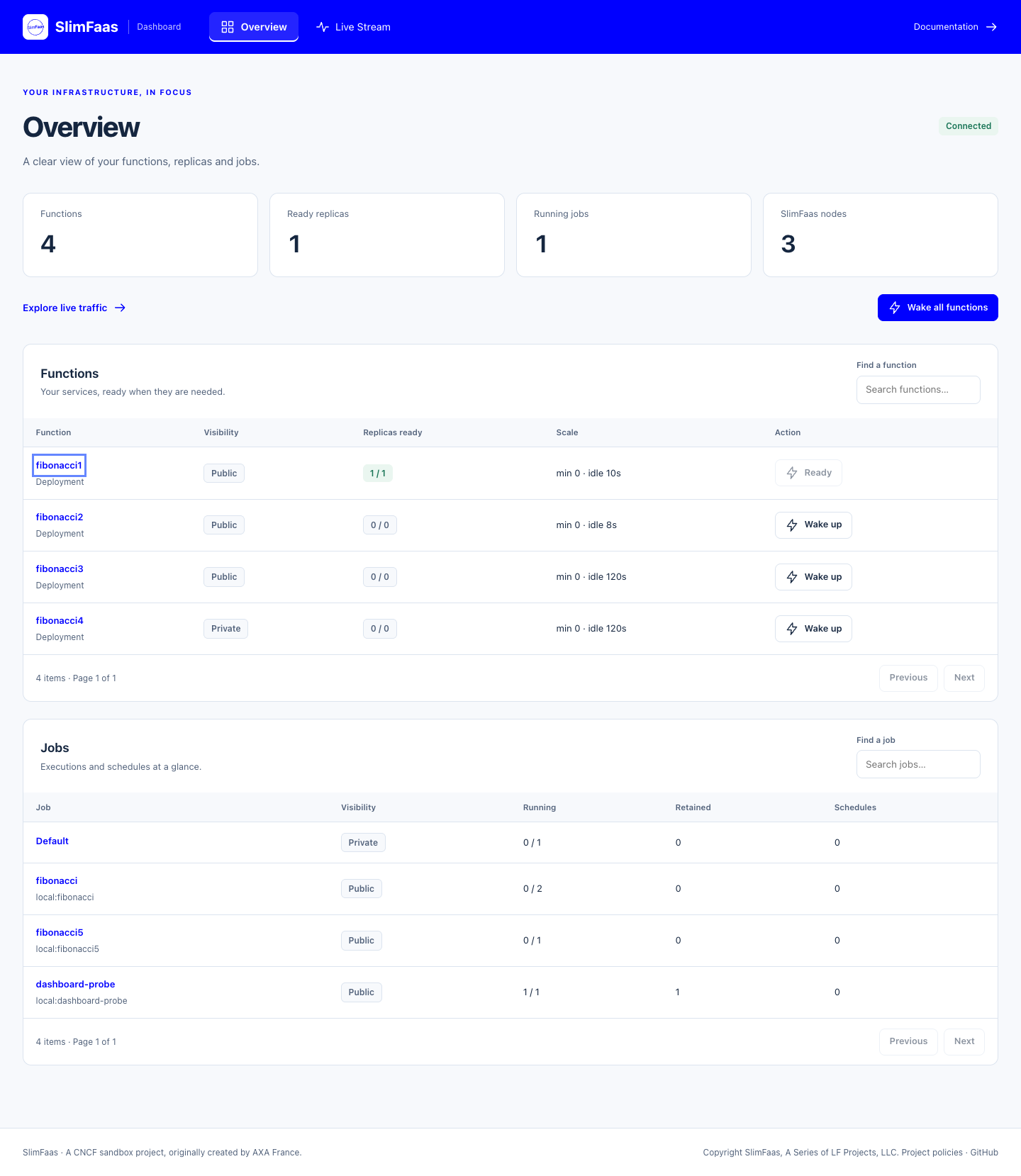

• Overview presents function, replica, job and node counters, compact searchable tables, and wake-up actions.
• Live Stream → Traffic opens the zoomable live canvas and its searchable actor list or event journal.
• Live Stream → Data lists set keys and file metadata, with expiry and file sizes.
• Live Stream → Scaling explains each function’s scaling decisions and offers a read-only playground.

The views have stable links: /#/overview, /#/live/traffic, /#/live/data and /#/live/scaling. Select a function or job name in Overview to open its configuration and paginated instance details. Tables show 100 items per page; completed jobs stay available until their configured retention expires. Executions are attached by the complete configuration name, so configurations such as fibonacci and fibonacci5 never share the same execution row.

2. Infrastructure Overview

Overview lists functions detected from deployments, statefulsets, daemonsets and WebSocket clients. Rows show visibility, ready/requested replicas and scale settings. Select a name to inspect configuration, resources, schedules, dependencies, retry settings and individual replicas in a side panel.

Replica and execution lists support search and pagination instead of expanding every instance into the main page. The side panel supports Escape to close and returns keyboard focus to its trigger.

3. Wake-Up Actions

The UI exposes two wake-up actions:

• Wake Up on one function calls POST /wake-function/{functionName}.
• Wake Up All Functions calls POST /wake-functions.

SlimFaas coalesces repeated wake-up calls while a wake-up is already in progress for the same function. The UI also applies a short local cooldown to avoid accidental repeated clicks.

4. Live Status Stream

The UI connects to:

GET /status-functions-stream

This endpoint uses Server-Sent Events (SSE). It sends:

• state events: periodic full snapshots containing functions, queue lengths, jobs, SlimFaas replicas, SlimFaas nodes, front status, LiveActivitySamplingRatio and MaxLiveEventsPerSecond.
• activity events: single live network activity events.
• activity_batch events: grouped live network activity events during bursts.

Replica and caller IP addresses are never sent in the stream's network address fields. Before serializing state (including RecentActivity), activity and activity_batch, the server replaces literal IPv4/IPv6 addresses with opaque id_… tokens using HMAC-SHA-256 and a private random process key. Equivalent IPv4/mapped-IPv6 forms share a token. An unkeyed hash or public salt is not used because private address ranges can be enumerated.

Functions[].Pods[].Identity contains the opaque identifier shown by the dashboard. The former Ip field is no longer emitted. SourcePod and TargetPod carry the matching token or an existing pod/job execution name. The dashboard searches names and identifiers and retains replica selection by name. Loopback caller identities are omitted to avoid attributing local tools to a function sharing the same address.

Tokens are consistent across subscribers and peer events served by one process; they change after a restart or when reconnecting to another node. Treat them as transient correlation identifiers, not persistent replica IDs. Raw addresses remain internal to routing and the access-controlled peer activity endpoint. No storage migration or client-side hashing is needed. Stream consumers must migrate from Pods[].Ip to Pods[].Identity and treat the value as opaque.

The browser reconnects automatically if the stream disconnects. Overview and Data use ?activity=false on this endpoint to receive status snapshots without an activity subscription. The default remains a full Traffic stream. Both modes share the SSE client quota; metadata streams and status-only views do not activate peer activity scraping.

Activity IDs are opaque and unique across process restarts. Peer activity uses an application HTTP port, excluding the Raft port even when it is listed first (as in native local mode). Peers are read with up to four requests concurrently while Traffic has subscribers, using a 500 ms interval by default. A relative bootstrap window avoids replaying older history and accommodates different host clocks. Subsequent reads overlap by one millisecond and deduplicate by event ID. The internal endpoint retains its array response and additionally supports windowMs (bounded to 60 seconds), X-Activity-Watermark and X-Activity-Instance response headers. Older peers without these headers are primed without replaying their history.

5. Network Map

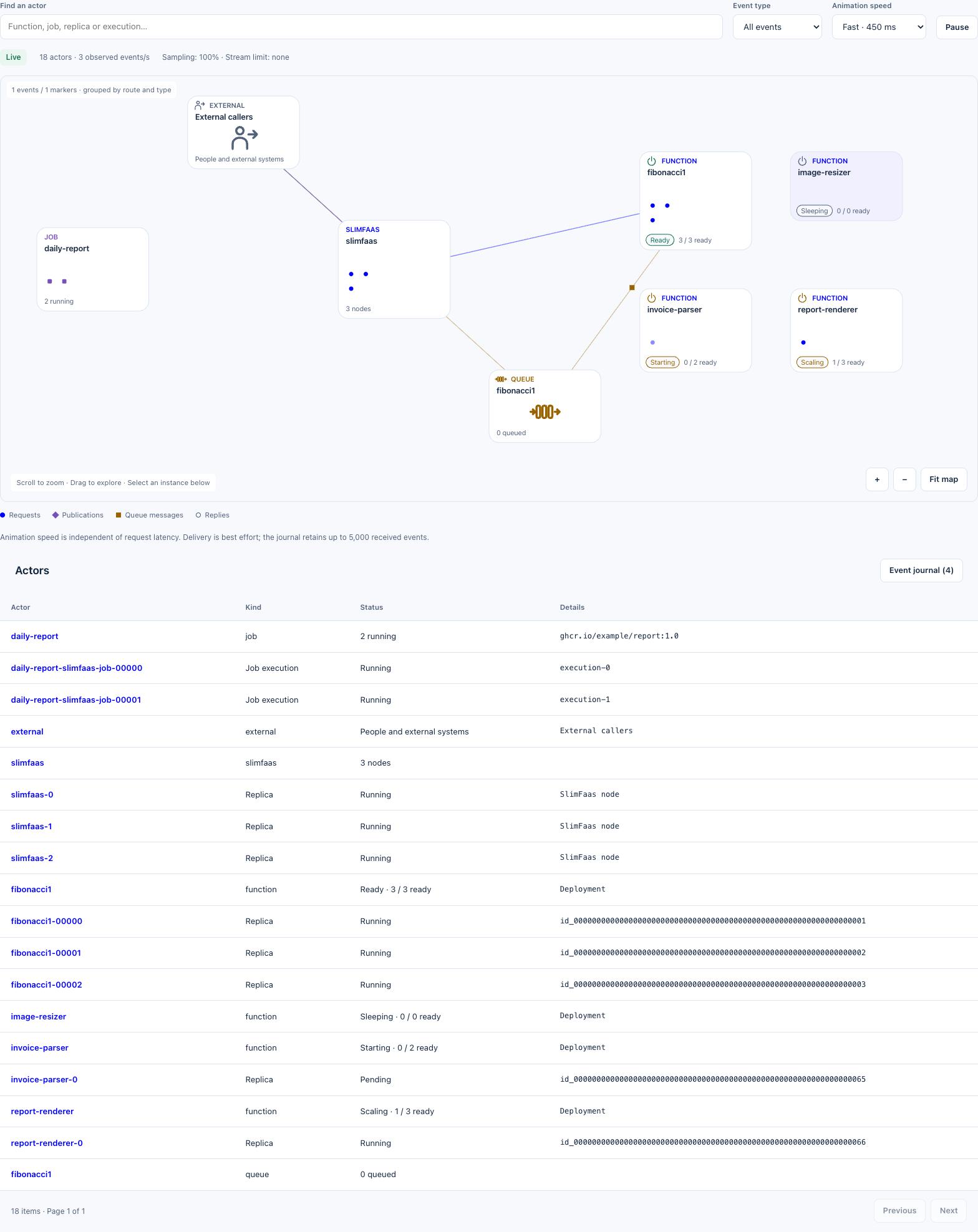

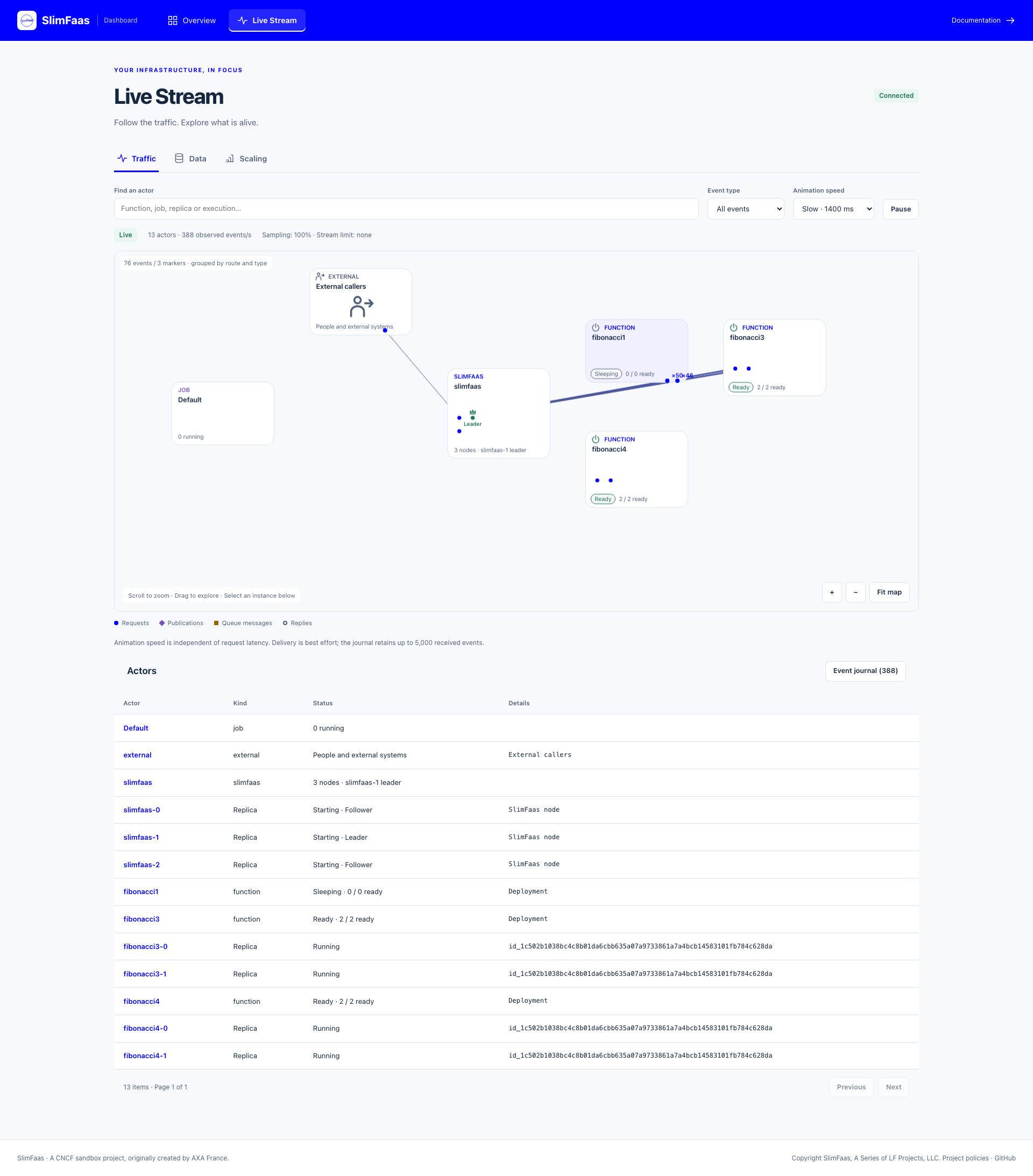

When SlimFaas:EnableFront is enabled, Traffic draws a canvas map of external callers, managed jobs, SlimFaas nodes, queues and functions. The overview groups replicas and executions by workload. Zooming reveals individual instances with no fixed instance-count cap. Groups reserve space for their instances; offscreen points are omitted from drawing.

Scroll or use the zoom buttons, drag to pan and use Fit map to return to the overview. Keyboard users can focus the canvas and use arrow keys, +, - and Home. The searchable actor table provides another way to select every instance. Selection focuses the map and highlights its connections while retaining other traffic. Enable Isolate selection to filter the map and journal to that actor. Active event-type and isolation filters are displayed above the map; Clear filters restores the global view.

The journal retains at most 5,000 received events. Pause freezes the current view; Resume live returns to current traffic without replaying the paused interval. Markers are grouped by route and event type and independently limited to 200; the actor inventory is not sampled. Each grouped marker shows its event count. The canvas reports any events omitted by the visual limit separately from the retained journal. Reduced-motion preferences replace movement with static activity highlights.

Animation speed offers Fast (450 ms), Normal (800 ms) and Slow (1,400 ms) for each hop between two actors and remembers the choice in this browser. Fast is the default. This duration is a visual convention, not measured function latency. New arrivals use the browser's monotonic receipt clock, so an older server timestamp does not hide a live event. Returning from Pause, reconnecting or restoring a background tab does not replay stale animations.

Requests use blue circles, publications purple diamonds, queue messages amber squares and replies grey outlined circles. Queue groups show a FIFO symbol, directional arrows and their exact current length; an observed queue remains visible when empty. External callers use a person and incoming-arrow symbol, covering people and external systems.

Ordered request and publication paths

At low request volume, each synchronous call follows these steps:

1. The caller sends a message to the SlimFaas replica handling the request.

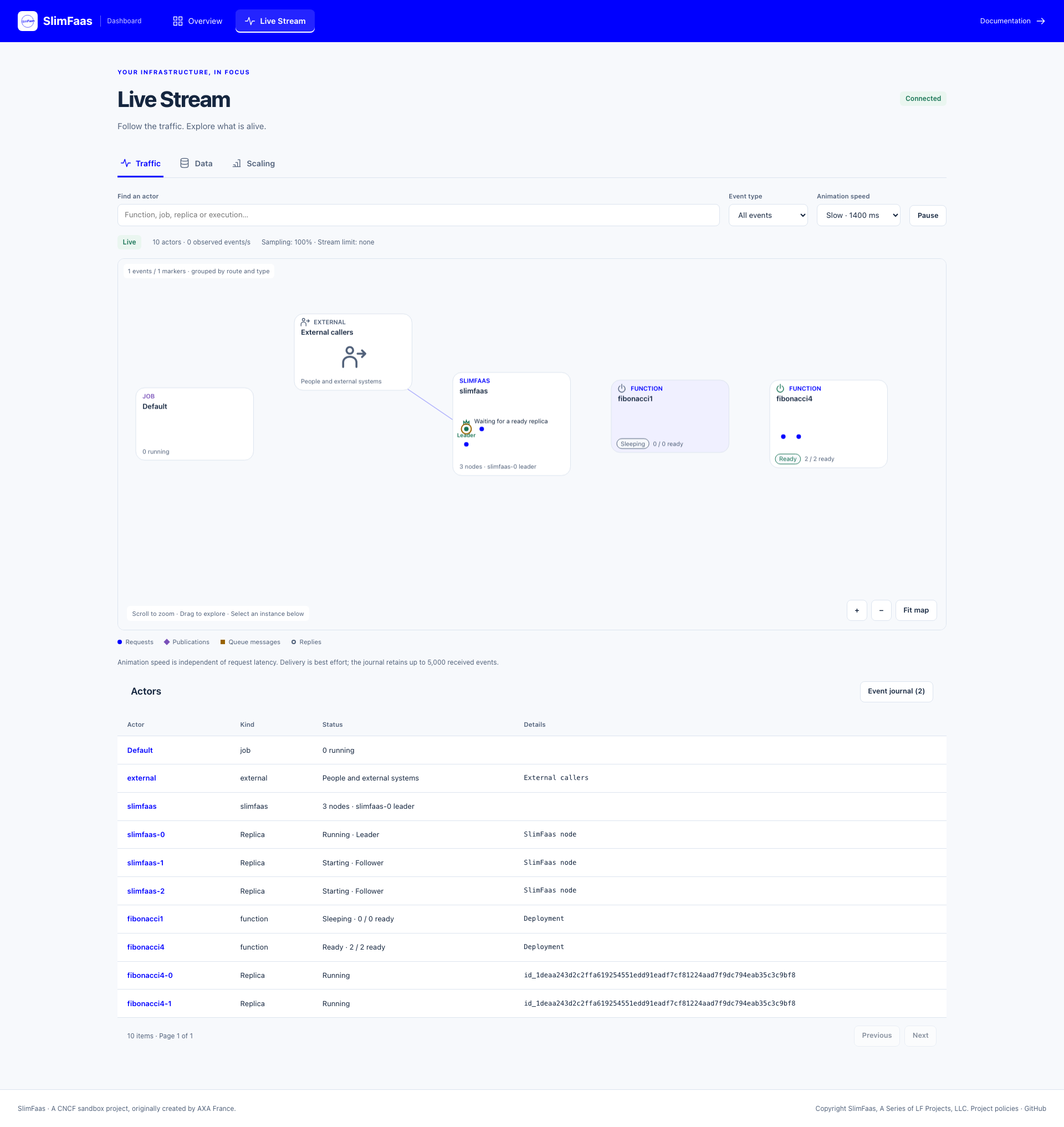

2. If the function is sleeping, the marker waits on SlimFaas with Waiting for a ready replica. Readiness notifications do not create additional trips.
3. An actual dispatch moves the message to the selected function replica. If its inventory snapshot is late, the map waits for its identifier instead of drawing to an empty function group.
4. The reply travels back to SlimFaas, then back to the original caller, using grey outlined circles.

Steps stay ordered even when the server finishes faster than the animation or delivers several events in one SSE batch. A managed job or known function caller retains its identity on the first and last hops. Waiting reflects observed server activity; the movement duration remains a visual convention.

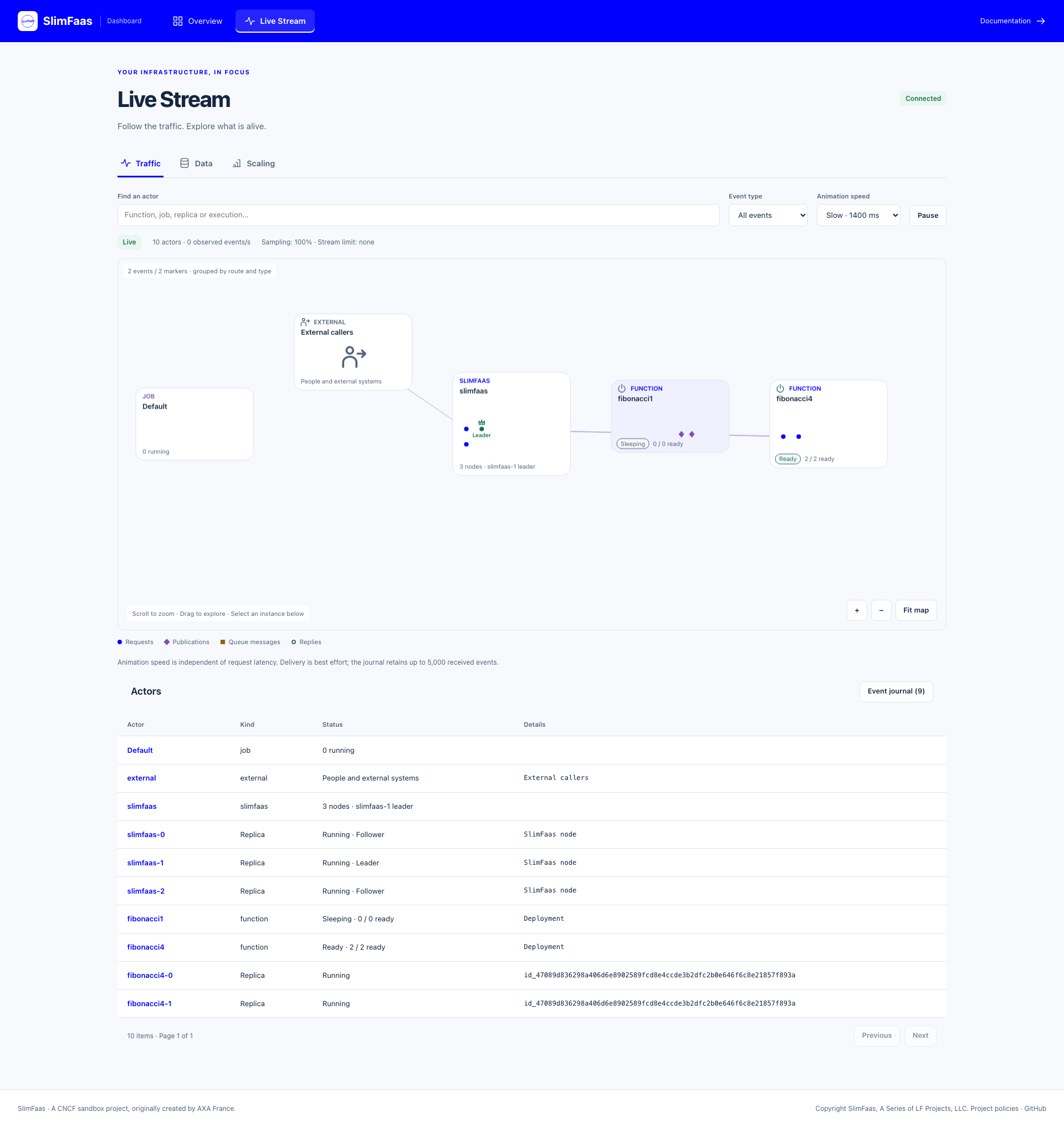

A publication has one incoming trip, followed by one purple diamond from SlimFaas to each ready subscribed replica. The canvas merges publication and HTTP transport records for the same delivery and omits the publication's technical replies. All received records remain available in the journal.

CorrelationId links an activity to its preceding activity: dispatches to their ingress, publication deliveries to their publication, and completions to their corresponding start. The JSON shape is unchanged. Queue delivery correlations retain their existing meaning. Older uncorrelated events show their individual physical hop; incomplete correlated events never invent missing hops. Missing parents are discarded after five seconds; unfinished playback is bounded to 5,000 records and expires after five minutes. Pause, reconnect and background-tab restoration discard pending animations.

See dashboard validation for automated native-runtime browser tests and reproduction commands.

Functions absent from this node’s snapshot but present in received events appear as Observed traffic · inventory unknown. Their observed replica identifiers remain selectable; the UI does not infer a ready/requested count from events.

Function groups include a power icon and a textual state: Sleeping (zero ready and requested), Starting (requested but none ready), Scaling (some ready, below requested capacity), Ready (requested capacity available), or Error when a failed/error pod state is explicitly reported and none are ready. Sleeping is an expected scale-to-zero state, not an error.

Rates describe observed events, not guaranteed request throughput. The actual configured sampling percentage and per-node rate limit are displayed in the UI; network interruptions and bounded server channels can also lose activity. The map aggregates repeated links. Whenever instances are visible at detailed zoom, trajectories retain their actual replica destination even without a selection. Show replicas frames a selected function; a brief arrival ring identifies the recipient. Traffic never pans the camera automatically.

When a SlimFaas-managed job calls a function or publishes an event, the incoming activity is matched against the IP addresses of running jobs. The message then starts from the exact job instance:

• synchronous HTTP and WebSocket calls are displayed as Job -> SlimFaas -> Function
• publications fan out from SlimFaas to each ready subscribed replica, retaining the job caller
• asynchronous calls are displayed as Job -> SlimFaas -> Queue -> Function

If the running instance disappears from the current status snapshot while the event is being displayed, the map falls back to the job configuration group. Calls that cannot be matched to a running job remain attached to the external caller node.

In native local mode, all processes share the host IP. SlimFaas therefore routes local entrypoint URLs declared in managed function and Job commands or environments through a per-replica or per-execution loopback gateway. Its signed identity identifies the known function pod or Job execution without relying on a distinct process IP. Loopback addresses are not treated as function replica identities, so requests sent from local tools such as curl or Bruno remain attached to the external caller node.

For recursive function calls, the caller is the exact pod found in SlimFaas's inventory. An internal exchange follows caller pod → SlimFaas → destination pod, with replies returning along the reverse path. The caller and destination can be the same pod. A single external POST to fibonacci3/fibonacci-recursive therefore produces exactly one incoming message from External and one final response to External; recursive calls and their replies stay between SlimFaas and the function pods.

The map is live-only for animations. Historical activity is not replayed into the animation stream when a new browser session starts.

SlimFaas nodes also synchronize recent local activity through the internal endpoint:

GET /internal/activity-events?since=<unix-ms>

This endpoint is intended for peer SlimFaas nodes inside the namespace.

Queue deliveries and the leader

A queued delivery produces correlated dequeue and request_out records. Both remain in the journal, but the canvas represents the attempt once, starting at Queue → destination replica. A retry has a new attempt identity and remains visible. This applies to HTTP and WebSocket deliveries without changing the WebSocket client protocol. A queue observed through peer activity also remains visible when its inventory is absent locally; its label is Queue length unknown until a snapshot supplies the count.

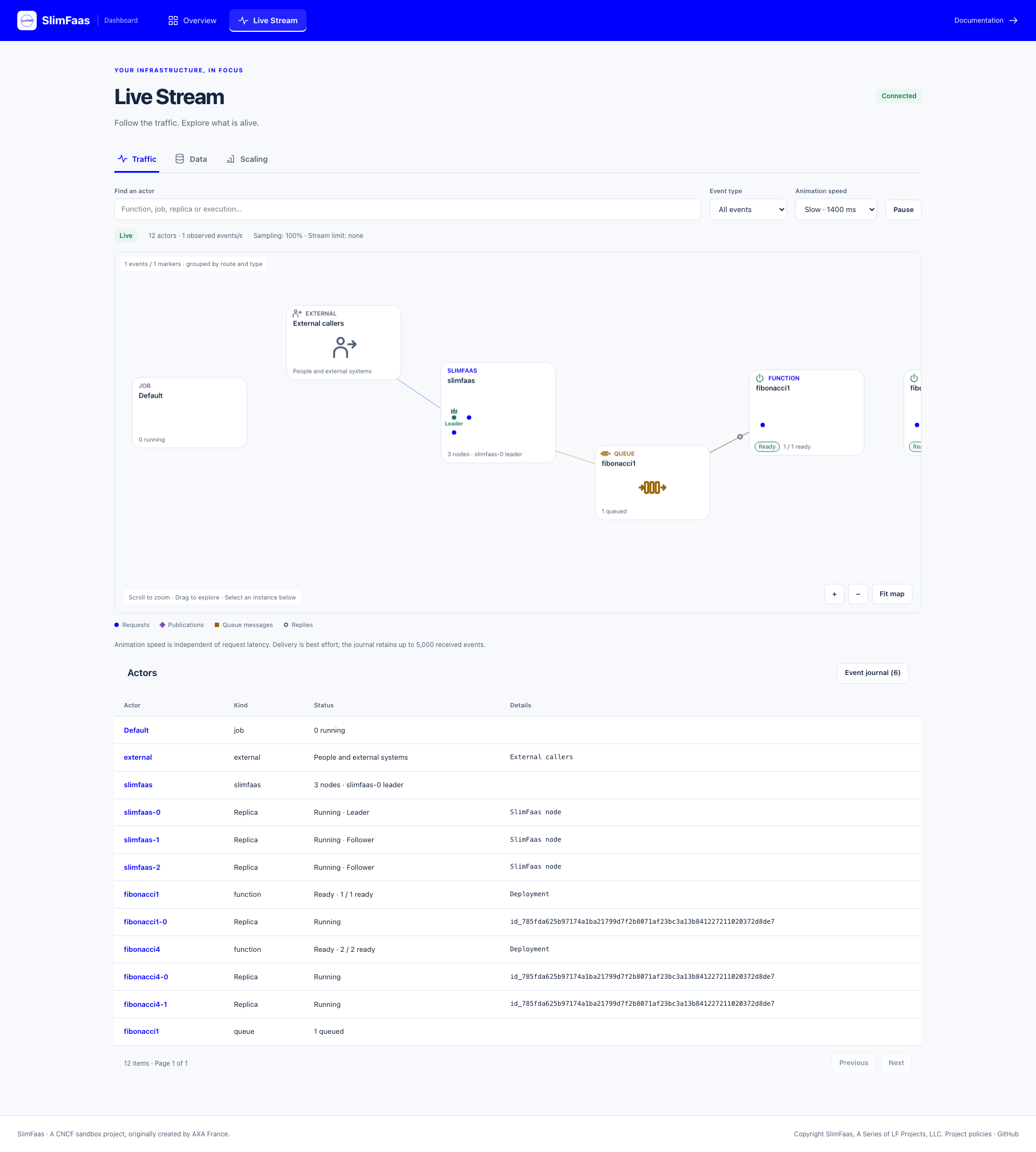

A queued HTTP attempt ends with one destination replica → Queue reply. The transport response remains in the journal, while the worker's correlated logical completion drives the animation. An HTTP 202 from the function does not finish that attempt: for callback-based processing, the queue reply waits for completion. Replies use the distinct outlined response marker, including when HTTP responses arrive before the dispatch animation finishes.

SlimFaasNodes[].Role is an optional Leader, Follower or Unknown field, separate from readiness. The map marks the current Raft leader in green with a crown and Leader label. The collapsed group names it too. During an election or when the known leader cannot be mapped to a managed node, the role is Unknown. Endpoint matching stays server-side and includes ports, including the three native demo nodes sharing loopback.

Instance logs

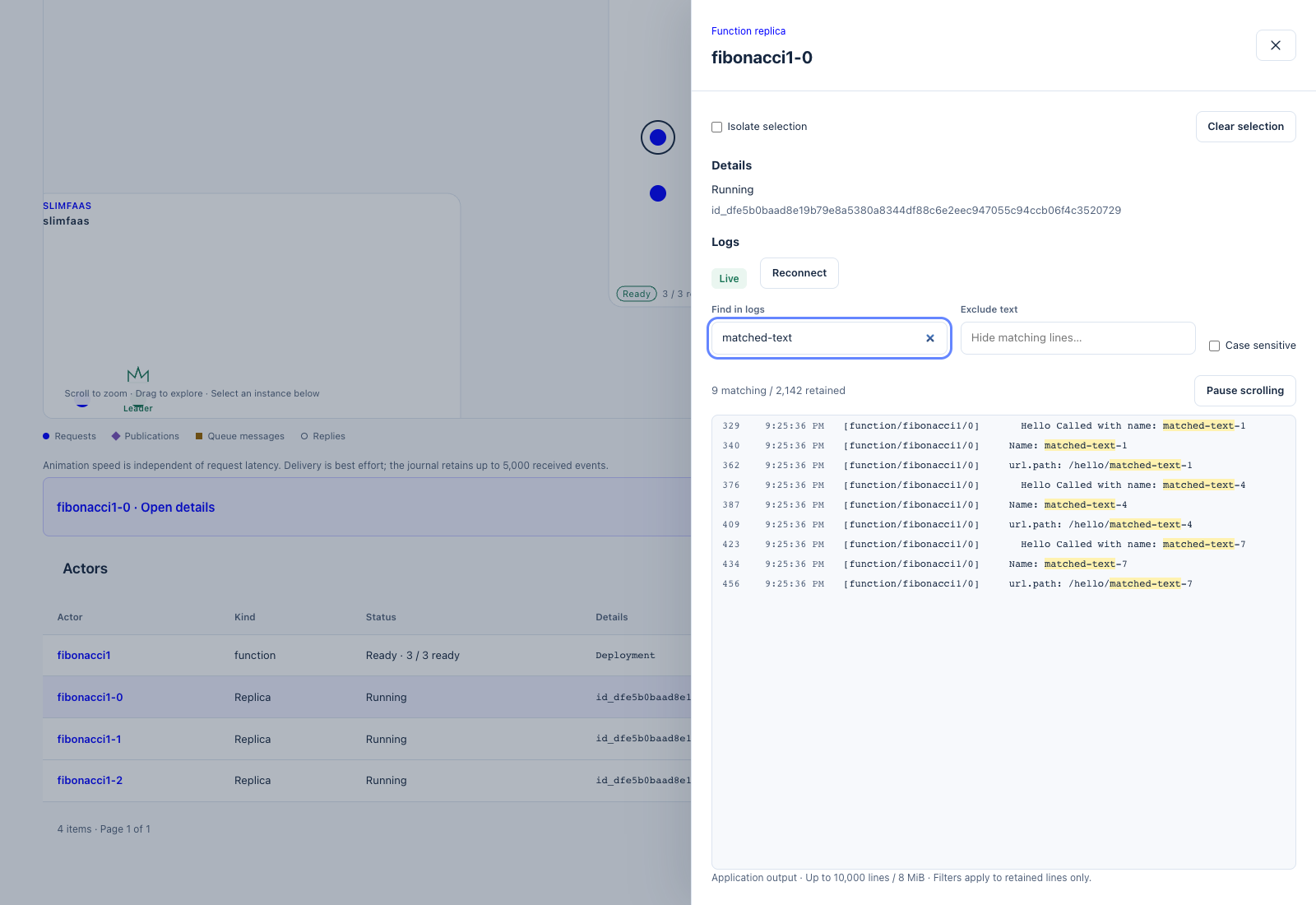

Select a function replica, job execution or SlimFaas node on the map or in the actor list. Its drawer shows compact Details above Logs, which automatically loads retained output and follows new lines when log access is enabled. Use Find in logs, Exclude text and Case sensitive to filter the retained buffer. A non-empty Find in logs search highlights each occurrence of the searched text in yellow, including newly received matches. The surrounding text, line numbers and timestamps keep their usual background. Only matching lines are shown; clearing the search removes the highlight. Search text is literal, including punctuation and Unicode. Select a container when a Kubernetes pod has more than one. Scroll upward or use Pause scrolling to inspect output; Follow latest returns to the latest lines. Reception continues while scrolling is paused.

Selection opens the same right-hand drawer as Overview, with details and live output together for individual instances. The drawer is at most 760 px wide and fills the screen on mobile. The map continues to receive traffic behind the modal drawer; close it to interact with the map. Escape, the close button or a click on the backdrop closes the drawer and returns keyboard focus to its trigger. Closing keeps the selected actor and Isolate selection filter; use Open details to reopen it or Clear selection to return to global traffic.

Log source discovery starts when an instance drawer opens; only an authorized, available source starts a log stream. Disabled, denied or unavailable sources show a compact status instead of an empty viewer. Groups, queues and external actors show details only. Closing the drawer, changing the selected instance or losing that instance stops the subscription and pending reconnect attempts immediately. Reopening the drawer loads the current tail and follows new output. The log viewport uses the available drawer height and renders only visible rows plus a small overscan, including when the window is resized.

The viewer retains at most 10,000 lines and 8 MiB of UTF-8 text, with 16 KiB per line. Long lines and discarded history are indicated. Only the visible rows are rendered. Log output is displayed as text and terminal control sequences are removed. Filters do not search older output on disk or in the orchestrator.

Reading logs requires both SlimFaas:EnableFront and the dedicated SlimFaas:ExposeLogs option. ExposeLogs defaults to false. Setting it to true grants dashboard visitors access to application output, which may contain addresses or sensitive text written by the application; it does not automatically redact that content. Traffic identities remain protected independently. Tutorial deployments enable logs explicitly.

{
  "SlimFaas": {
    "EnableFront": true,
    "ExposeLogs": true
  }
}

Logs are available for native managed processes, Kubernetes containers and Docker containers. External WebSocket clients and IDE processes attached with debugUrl show Logs unavailable: SlimFaas does not capture their stdout/stderr. Completed job logs remain available while the execution is retained by its orchestrator. Sources are tied to an instance generation; after a restart, use Reconnect to discover the current source. Closing the drawer or selecting another instance stops the previous subscription.

The public discovery request requires an instance name:

GET /status-log-sources?kind=function&name=fibonacci1&replica=fibonacci1-0
GET /status-logs-stream?source=<Id returned by discovery>&tail=10000

kind is function, job or slimfaas; name is the function/configuration name, or slimfaas for nodes. For jobs, replica is the full execution name. Discovery returns Status and Sources containing Id, Name and Container. Source references are portable across SlimFaas nodes and are revalidated against managed resources; they are not authorization tokens. Browser requests cannot supply a filesystem path or upstream URL.

The SSE stream emits log_state (Status, Session, DroppedLines, MaxLines, MaxBytes) and log_batch (Lines, each with Id, Text, nullable TimestampMs, and Truncated). IDs order lines within the session; identical text can occur on multiple distinct lines. The initial tail is bounded to 1–10,000 lines and defaults to 10,000. Retention and byte limits can return fewer lines. Each batch contains at most 200 lines and 256 KiB of text.

Each node shares at most four source readers across viewers. Logs also reserve the global StatusStream.MaxSseClients quota, without starting Traffic peer synchronization. Slow viewers do not block application logging; buffers discard old lines when needed. The UI shows disabled/access-denied, disconnected, ended and removed-source states. Failed connections retry automatically at most three times, then require Reconnect.

Kubernetes requires namespace-scoped get on pods/log; function ownership validation also requires get on replicasets. The demo service account includes these permissions. No central log storage is introduced.

Mobile log viewer · Leader identification

6. Jobs Overview

The jobs section uses the same SSE state payload as the function dashboard.

It shows:

• number of job configurations
• number of currently running jobs
• number of configured schedules
• image, visibility, dependencies, resources, schedules, and running job details when available

If no job configuration is loaded, the section displays an empty state.

The Running count includes only executions whose status is Running. Pending and finished executions remain visible in the details table; Succeeded and Failed entries are retained until their configured TTL expires. Retaining finished entries does not occupy parallel job slots or keep their dependencies awake. See job concurrency and retention.

Data inventory

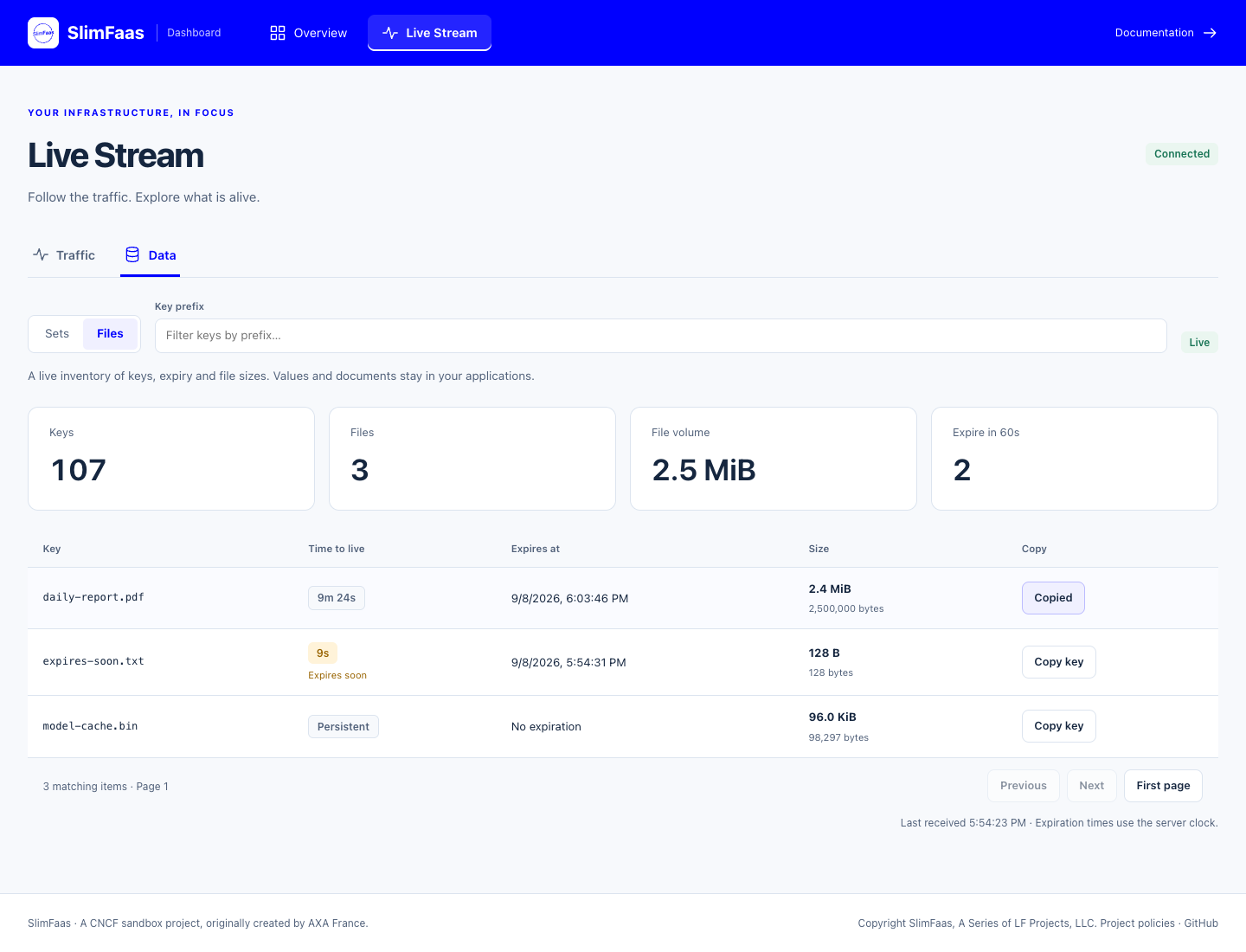

Open Live Stream → Data, choose Sets or Files, and search by key prefix. The table shows stable key ordering, remaining TTL, exact expiration time and, for files, the size in bytes. Persistent means no expiration; Expires soon marks the next 60 seconds. New or changed metadata is briefly highlighted. The summary shows all visible set/file counts, known file volume and upcoming expirations; it is independent of the prefix filter.

Only keys, expiration and file sizes are transmitted. The dashboard never fetches set values, file contents, hashes or filenames. Internal offload files and technical TTL keys are excluded. An unreadable file size appears as Unknown and is excluded from the volume total.

GET /status-data-stream?kind=files&prefix=report&limit=100
Accept: text/event-stream

The endpoint emits data_state snapshots with Kind, ServerTimeMs, Entries, NextCursor, TotalCount, Summary and RefreshIntervalMs. Each entry contains Id, nullable ExpiresAtMs (Unix milliseconds), and nullable SizeBytes. Use after=<NextCursor> for the next page; limit defaults to 100 and accepts 1–500. The cursor is an exclusive key boundary, so deleting its key does not invalidate it. Return to the first page to see new keys before that boundary.

Snapshots use the node's locally applied Raft state and share one lazily refreshed metadata projection at StatusStream.StateIntervalMilliseconds. A freshly committed change may take an additional replication interval to reach a follower. Short-lived keys created and removed between snapshots may never appear. This inventory is not an audit log. The browser computes TTL countdowns using the server clock and labels disconnected inventory as stale.

By default, metadata follows Data:DefaultVisibility and the existing internal-request policy. To let dashboard visitors inspect metadata while keeping /data private, explicitly enable:

SlimFaas__ExposeDataMetadata=true

This option grants access only to the metadata stream. Value/document read, write and delete permissions still follow /data configuration. SlimFaas:EnableFront=false disables the dashboard access override; the metadata API then follows the existing /data visibility and internal-request policy. Disallowed access or ports return 404; invalid queries return 400; the shared status/metadata SSE client limit returns 429. An open Data view uses two SSE slots (status and metadata); allow at least two per viewer when setting a client limit. Permanent metadata access failures stop automatic reconnection; transient failures use bounded exponential retries and offer a Retry action.

7. Main Backend Endpoints Used by the UI

8. Configuration in appsettings.json

SlimFaas configuration is read from the SlimFaas section in appsettings.json.

The same values can be overridden with environment variables. For .NET configuration, use __ to represent nested keys. For example:

SlimFaas__EnableFront=false
SlimFaas__StatusStream__StateIntervalMilliseconds=2000

SlimFaas UI and Dashboard Settings

StatusStream is optional in appsettings.json. If the section is missing, SlimFaas uses the default values above.

9. Example Kubernetes Environment Overrides

env:
  - name: SlimFaas__EnableFront
    value: "true"
  - name: SlimFaas__StatusStream__StateIntervalMilliseconds
    value: "1000"
  - name: SlimFaas__StatusStream__PeerSyncIntervalMilliseconds
    value: "500"
  - name: SlimFaas__StatusStream__MaxSseClients
    value: "100"
  - name: SlimFaas__StatusStream__MaxLiveEventsPerSecond
    value: "500"
  - name: SlimFaas__StatusStream__LiveActivityBatchSize
    value: "100"

Use lower intervals for more reactive dashboards and higher intervals for lower backend load. In high-traffic clusters, prefer setting MaxLiveEventsPerSecond, LiveEventSamplingRatio, and LiveActivityBatchSize instead of disabling the front entirely.

Scaling diagnostics and playground

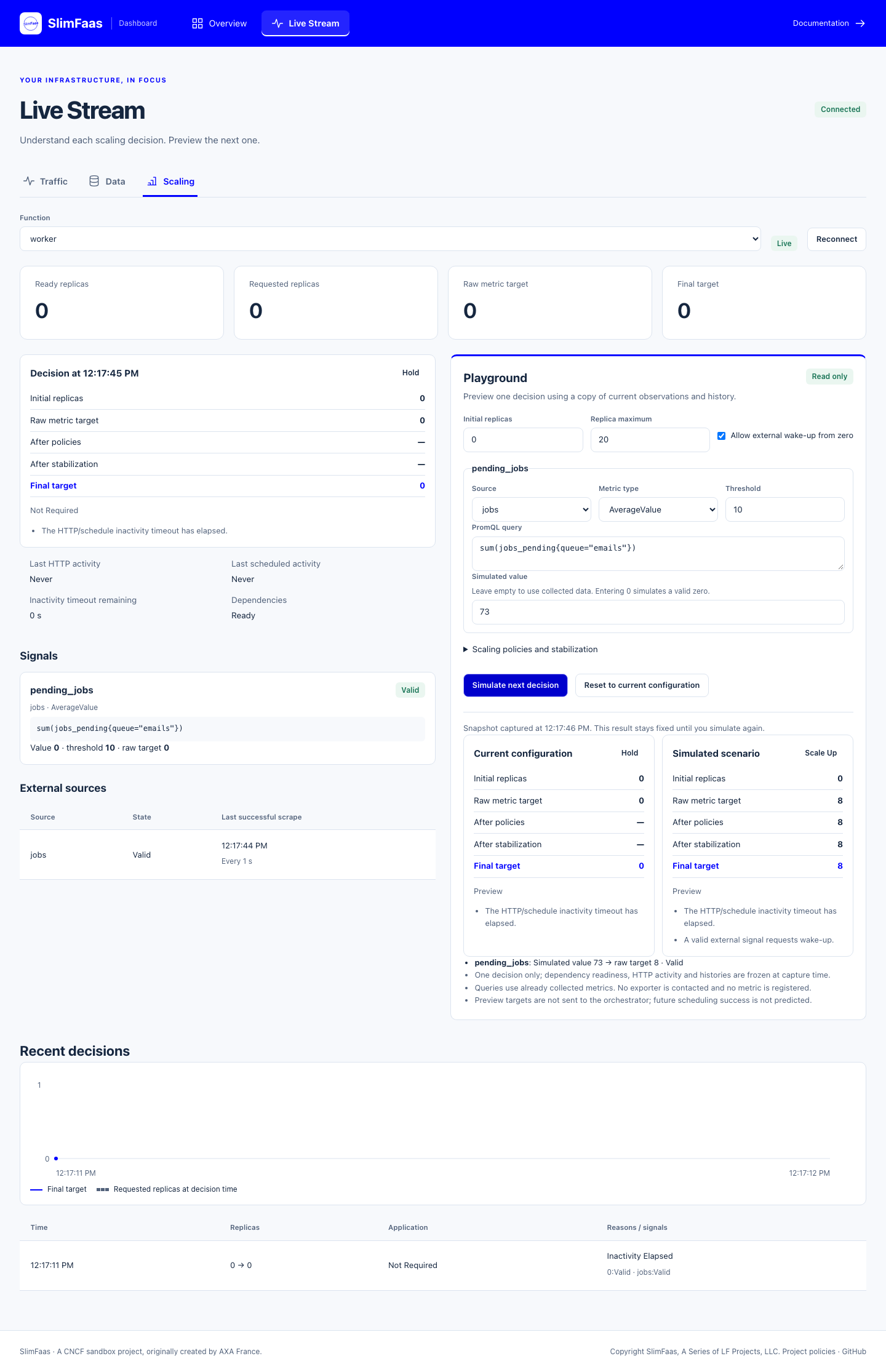

Open Live Stream → Scaling, select a function, or use Inspect scaling and open playground in its Overview details. A direct link can select a function: /#/live/scaling?function=worker.

The live view distinguishes ready replicas, the orchestrator’s requested count, the raw metric target, policy/stabilization results and the final decision. For jobs_pending = 73 and threshold 10, the raw target is eight; the default first scale-up permits four. An accepted request means the orchestrator accepted the target, not that four replicas are ready.

Each trigger shows its source, query, value, threshold and state. An absent or invalid observation displays —, never zero. NotEvaluated identifies triggers intentionally skipped by the real cycle, including local metrics at zero. During dependency waits, observed triggers can show their raw target while policy and stabilization steps remain unevaluated. Reasons explain inactivity, HTTP/schedule demand, dependency readiness, disabled external wake-up, invalid signals, policies, stabilization and reported infrastructure blocks. The inactivity countdown alone is not a promise to scale down: other gates can retain capacity.

The journal records changes in target, application status, trigger/source state and decision reasons. It retains at most 15 minutes and 300 events per function, within a shared 8 MiB diagnostic budget. Large frames and older events can be omitted; the UI marks truncation. History is in memory, and a new leader session restarts it. It is separate from the histories used by the autoscaler.

Try a scenario

The playground starts from the current configuration. Change the initial replica count, maximum, ScaleFromZero, trigger thresholds/types, configured source selection, PromQL queries or Behavior JSON, then select Simulate next decision. An empty simulated-value input uses collected data; entering 0 substitutes a valid zero. The result identifies substituted observations.

The server compares the current configuration and scenario using the same captured metric points, source health, HTTP/schedule context, dependency readiness and decision histories. For a value of 73, changing the threshold from 10 to 20 changes the raw target from eight to four; existing policy budgets may still hold the final target. Results show their capture time and stay fixed until another simulation. Reset to current configuration reloads the form without applying anything.

A simulation does not call exporters, register metrics, alter real histories or supervision metrics, wake dependencies, save annotations or send replica requests. It evaluates one decision, without predicting future dependency readiness or orchestrator success. Only already collected metrics are available: a new query cannot enable new collection. Sources must already exist in the function configuration. Existing annotations and /debug/promql/eval keep their behavior.

Simulation requests are limited to 64 KiB, 32 trigger overrides, 2,048 characters per query and bounded expression complexity. Two simulations can run concurrently per leader, with a five-second execution budget. Captured metric data is limited to 8 MiB per simulation; exceeding the budget returns an explicit error. Behavior overrides accept at most 16 policies per direction, with periods/stabilization up to one day. No new dashboard dependency is required.

Streams and cluster behavior

Scaling opens the status stream with activity=false plus /status-scaling-stream?function=worker. These consume two slots in the existing SSE budget and do not activate Traffic collection. Changing the function or leaving the view cancels its stream; temporary failures reconnect with bounded retries, while permanent access errors stop reconnecting.

Diagnostics and simulations come from the leader. A follower relays requests through its configured cluster membership, using bounded HTTP responses and shared short-lived frame caching. The browser never supplies a peer URL. A leader change resets the displayed journal; unavailable data is marked and the last received decision remains visible during reconnects.

Both new public endpoints require the front to be enabled and use the existing allowed-port filter. Peer endpoints additionally require a direct connection from a SlimFaas member IP; forwarded headers do not grant peer access. Upgrade all nodes before using the new view; older peers can temporarily report that diagnostics are unavailable. No annotation migration is needed. WebSocket-only workers absent from the orchestrator’s scaling inventory have no scaling decision to inspect.
